AWS Data Pipeline

In this example the Digraph has a left to right direction as defined by the rankdir variable. The separation between the nodes is defined by the ranksep parameter and minimal border padding around the image by pad.

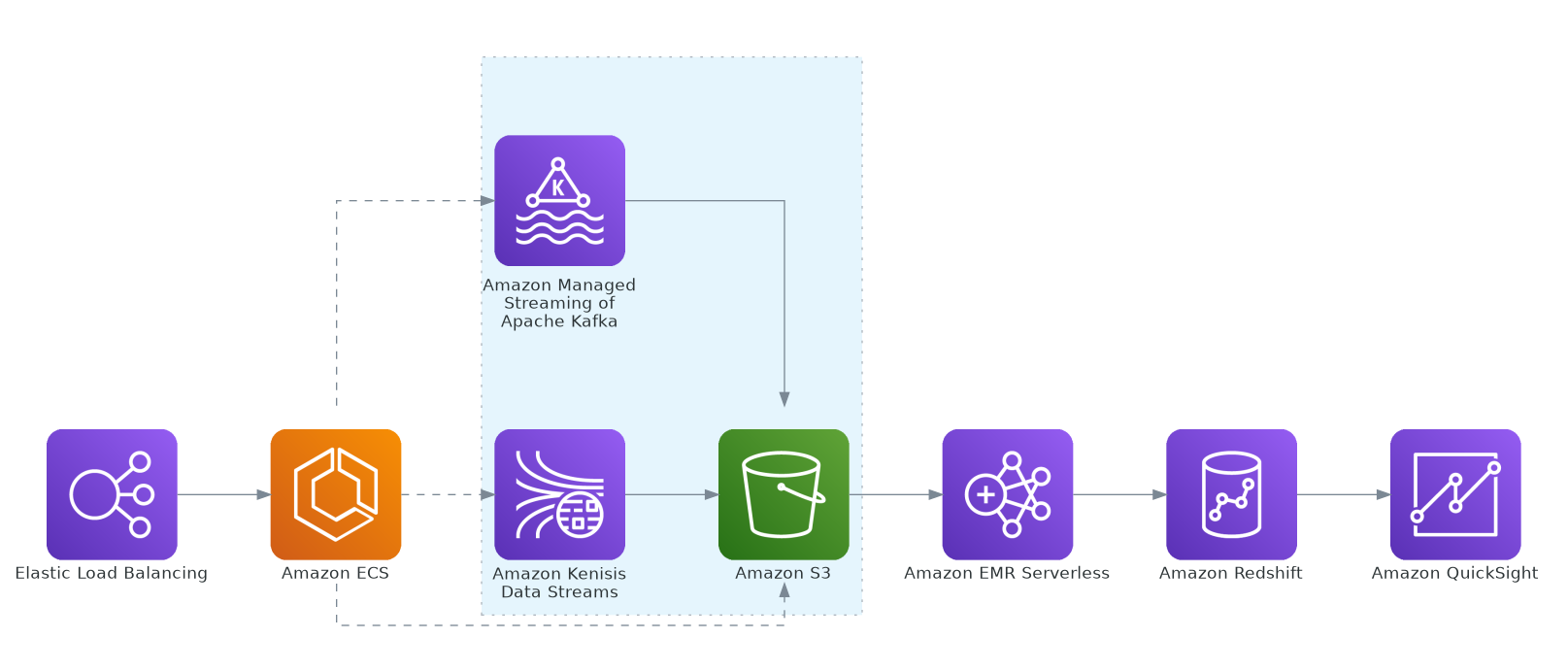

The following image:

was generated with this code:

require 'diagrams-rb'

module Diagrams
  Digraph.new(rankdir: 'LR', ranksep: 1, pad: 0.5) do
    node :elb, label: 'Elastic Load Balancing', icon: Aws::Network.elastic_load_balancing
    node :ecs, label: 'Amazon ECS', icon: Aws::Compute.elastic_container_service
    cluster margin: 10, style: 'dotted' do
      node :kafka, label: 'Amazon Managed\nStreaming of\nApache Kafka', icon: Aws::Analytics.managed_streaming_for_kafka
      node :kinesis, label: 'Amazon Kenisis\nData Streams', icon: Aws::Analytics.kinesis_data_streams
      node :s3, label: 'Amazon S3', icon: Aws::Storage.simple_storage_service_s3
    end
    node :emr, label: 'Amazon EMR Serverless', icon: Aws::Analytics.emr
    node :redshift, label: 'Amazon Redshift', icon: Aws::Analytics.redshift
    node :quicksight, label: 'Amazon QuickSight', icon: Aws::Analytics.quicksight

    streams = %i[kafka kinesis]
    edge :elb, to: :ecs
    edge :ecs, to: streams, style: 'dashed'
    edge :ecs, to: :s3, style: 'dashed'
    edge streams, to: :s3
    edge :s3, to: :emr
    edge :emr, to: :redshift
    edge :redshift, to: :quicksight
  end
end

This can be extended to a more complex example which illustrates the use of some of the additional Graphviz attributes:

require 'diagrams-rb'

module Diagrams
  Digraph.new(rankdir: 'LR', ranksep: 1.1, pad: 0.2) do # rubocop:disable Metrics/BlockLength
    node :admin, label: 'Admin', icon: Aws::General.user
    cluster 'AWS Cloud', margin: 30 do # rubocop:disable Metrics/BlockLength
      node :cloudfront, label: 'Amazon CloudFront', icon: Aws::Network.cloudfront
      node :apigateway, label: 'Amazon API Gateway', icon: Aws::Mobile.api_gateway
      node :s3_a, label: 'Amazon S3', icon: Aws::Storage.simple_storage_service_s3
      node :lambda_a, label: 'Amazon Lambda', icon: Aws::Compute.lambda
      node :dynamodb, label: 'Amazon DynamoDB', icon: Aws::Database.dynamodb
      cluster 'OpenID Connect', style: 'dashed' do
        node :cognito, label: 'Amazon Cognito\nUser Pool', icon: Aws::Security.cognito
      end
      cluster 'Pipeline Orchestration', margin: 50, style: 'dotted' do
        node :pipeline_orchestration, label: '', icon: nil, style: 'invis'
        node :cloudformation, label: 'Amazon CloudFormation', icon: Aws::Management.cloudformation
        node :stepfunctions, label: 'Amazon Step Functions', icon: Aws::Integration.step_functions
        node :eventbridge, label: 'Amazon EventBridge', icon: Aws::Integration.eventbridge
        node :lambda_b, label: 'Amazon Lambda', icon: Aws::Compute.lambda
      end
      cluster 'Data Pipeline', margin: 30, style: 'dotted' do
        node :data_pipeline, label: '', icon: nil, style: 'invis'
        node :elb, label: 'Elastic Load Balancing', icon: Aws::Network.elastic_load_balancing
        node :ecs, label: 'Amazon ECS', icon: Aws::Compute.elastic_container_service
        cluster margin: 10, style: 'dotted' do
          node :kafka, label: 'Amazon Managed\nStreaming of\nApache Kafka', icon: Aws::Analytics.managed_streaming_for_kafka
          node :kinesis, label: 'Amazon Kenisis\nData Streams', icon: Aws::Analytics.kinesis_data_streams
          node :s3_b, label: 'Amazon S3', icon: Aws::Storage.simple_storage_service_s3
        end
        node :emr, label: 'Amazon EMR Serverless', icon: Aws::Analytics.emr
        node :redshift, label: 'Amazon Redshift', icon: Aws::Analytics.redshift
        node :quicksight, label: 'Amazon QuickSight', icon: Aws::Analytics.quicksight
      end
    end

    streams = %i[kafka kinesis]
    edge :admin, to: :cloudfront
    edge :cloudfront, to: :apigateway
    edge :apigateway, to: :cognito, taillabel: 'Authenticate', labeldistance: 0.5, arrowhead: 'none'
    edge :s3_a, to: :cognito, label: 'Login', lhead: 'cluster_OpenID_Connect'
    edge :apigateway, to: :lambda_a
    edge :cloudfront, to: :s3_a
    edge :lambda_a, to: :cloudformation, taillabel: 'Execute', labeldistance: 0.5, arrowhead: 'none'
    edge :lambda_a, to: :dynamodb
    edge :lambda_b, to: :dynamodb
    edge :elb, to: :ecs
    edge :ecs, to: streams, style: 'dashed'
    edge :ecs, to: :s3_b, style: 'dashed'
    edge streams, to: :s3_b
    edge :s3_b, to: :emr
    edge :emr, to: :redshift
    edge :redshift, to: :quicksight
    edge :cloudformation, to: :stepfunctions, style: 'invis'
    edge :stepfunctions, to: :eventbridge, style: 'invis'
    edge :eventbridge, to: :lambda_b, style: 'invis'
    edge :pipeline_orchestration, to: :data_pipeline
  end
end

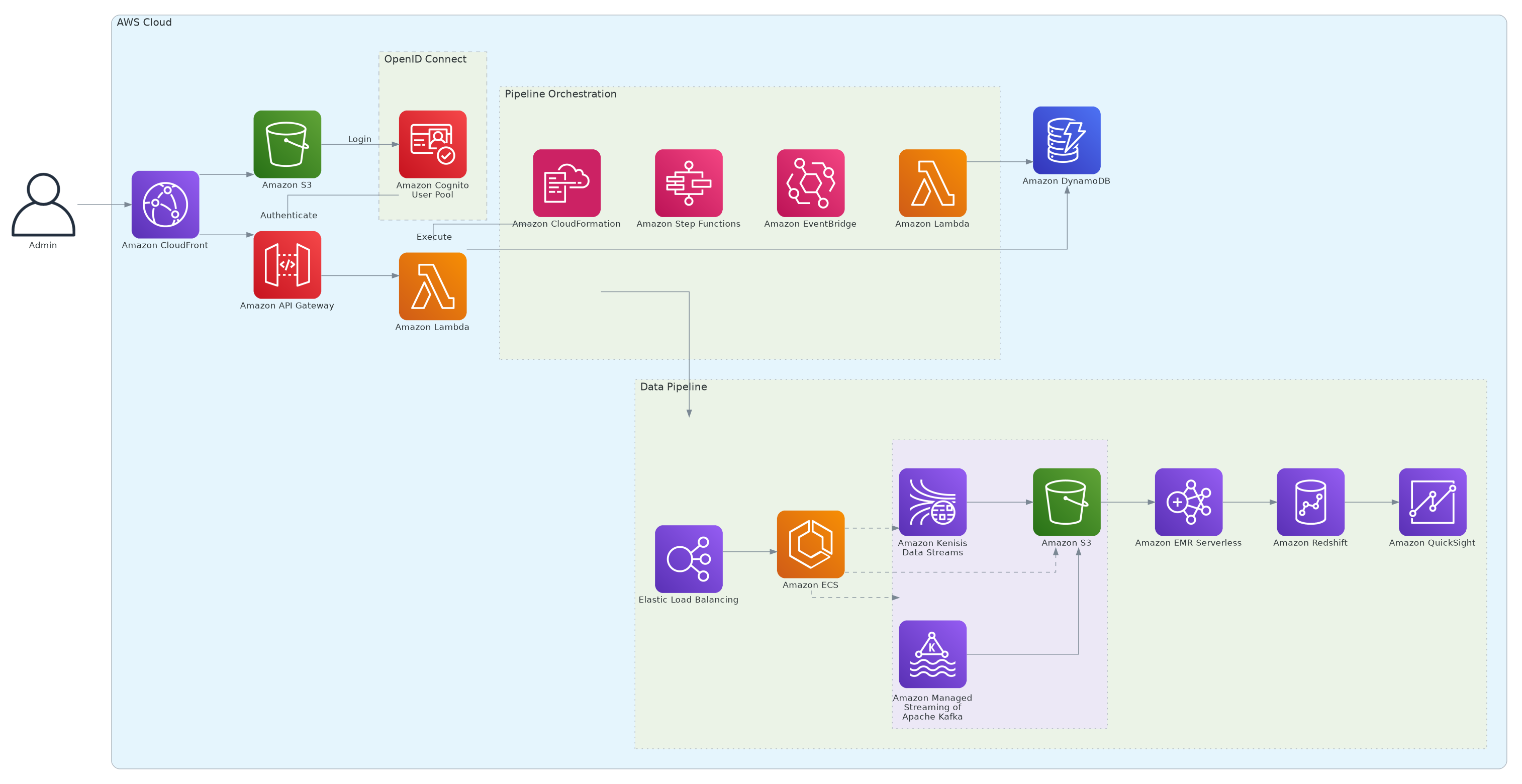

to produce the following image:

Architecture diagram taken from the AWS documentation
